UV laser marking machine
Product Name: UV Laser Marking Machine
Product specifications: UV-S3
Model features: The M355 ultraviolet laser marking machine is developed based on the 355nm ultraviolet laser with independent intellectual property rights owned by Shengxiong Laser. The 355nm ultraviolet light focuses on a very small spot, and the processing heat affected zone is very small, so it is mainly used for ultra fine marking, special material marking, and carving.
Main technical parameters:
|
Features/Model |
UV-S3 |
|
Laser output power |
≤3W |
|
wavelength |
355nm |
|
Beam quality M2 |
＜1.4 |
|
Laser Q-switching frequency |
0~100kHz |
|
Standard engraving range |
110mm×110mm |
|
Engraving depth |
≤1mm |
|
Whole machine power |
800W |
|
Minimum line width |
0.01mm |
|
repeatability |
±0.0001mm |
|
Power demand |
Single phase AC 90-250V/50Hz 5A |
|
Engraving speed |
5000 characters/s (single line Roman font height 1mm) |
|
Host system size |
900mm×680mm×1200mm |
|
Cooling system |
Constant temperature water cooling |
Applicable materials：
1. LCD glass QR code marking
2. The surface labeling of packaging bottles and boxes for cosmetics, drugs, food, and other polymer materials is precise, with clear and firm markings, superior to ink coding and pollution-free.
3. Mobile phone flip cover marking
4. Glass surface marking
Industry applications：
Labeling of food and pharmaceutical packaging materials with micropores (pore size d ≤ 10) μ m) . Marking and marking of flexible PCB boards. Removal of metallic or non-metallic coatings. Micro hole and blind hole processing of silicon wafer

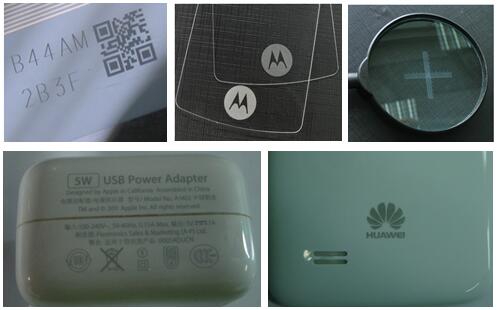

Marking sample:
