CO2-10/30/50/100/150Series Laser Engraving Machines
.jpg)
Means of indicators：
The core optical components of the CO2 10/30/50/100/150 series laser marking machine are all imported products from the United States - CO2 RF laser from Coherent Company, high-speed scanning galvanometer from GSI Company, and Ronar Smith flat field focusing lens from the United States. This provides a reliable guarantee for the continuous high-speed and stable operation of the machine. CO2 RF laser is a gas laser with a laser wavelength of 10.6 μ m. Belonging to the mid infrared frequency band, CO2 lasers have relatively high power and electro-optical conversion rate. CO2 laser uses CO2 gas as the working substance. CO2 and other auxiliary gases are charged into the discharge tube. When a high voltage is applied to the electrode, a glow discharge is generated in the discharge tube, which can cause gas molecules to release laser. After expanding and focusing the released laser energy, laser processing can be carried out by deflecting it through a scanning galvanometer.
The marking software runs on the WINDOWS platform with a Chinese interface and is compatible with file formats of various software such as AUTOCAD, CORELDRAW, PHOTOSHOP, etc., such as PLT, PCW, DXF, BMP, etc. It can also directly use SHX and TTF font libraries. Design graphics freely through computer, easy to operate, power controlled by software, continuously adjustable
Model characteristics：
1. High marking accuracy, fast speed, and arbitrary control of carving depth
2. High laser power, suitable for carving and cutting various non-metallic products
3. No consumables, low processing costs - laser operating life can reach up to 20000-30000 hours
4. Clear markings, less prone to wear and tear, high efficiency in carving and cutting, environmentally friendly, and energy-saving
Applicable materials and industries：
1. Craft gifts, furniture, leather clothing, advertising signs, model making, food packaging, electronic components, pharmaceutical packaging, printing plate making, shell nameplates, etc.
2. Applicable materials: The cutting materials mainly include non-metallic materials such as bamboo and wood products, paper, fabric leather, organic glass, epoxy resin, acrylic, unsaturated polyester resin, etc.
|
Characteristics of CO2 series laser marking machine products |
|
|
Characteristic model |
CO2-30/50/100/150 |
|
Laser output power |
10W/30W/ 50W/100W/150W |
|
wavelength |
10.64μm |
|
pulse frequency |
≤ 20kHz |
|
Engraving/cutting range |
110mm×110mm/ 300mm×300mm |
|
laser |
Imported CO2 laser |
|
Power consumption of the entire machine |
250W/1.2kw /1.5kw/2kw /2.5kw |
|
Engraving depth |
≤3mm/ ≤5mm/≤8mm /≤10mm /≤11mm |

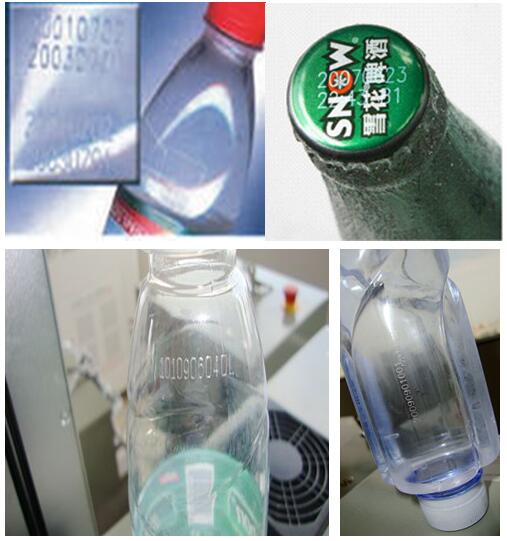

Marking sample：
